MULTICRACKER MC-A4
The ideal entry into modern grinding technology

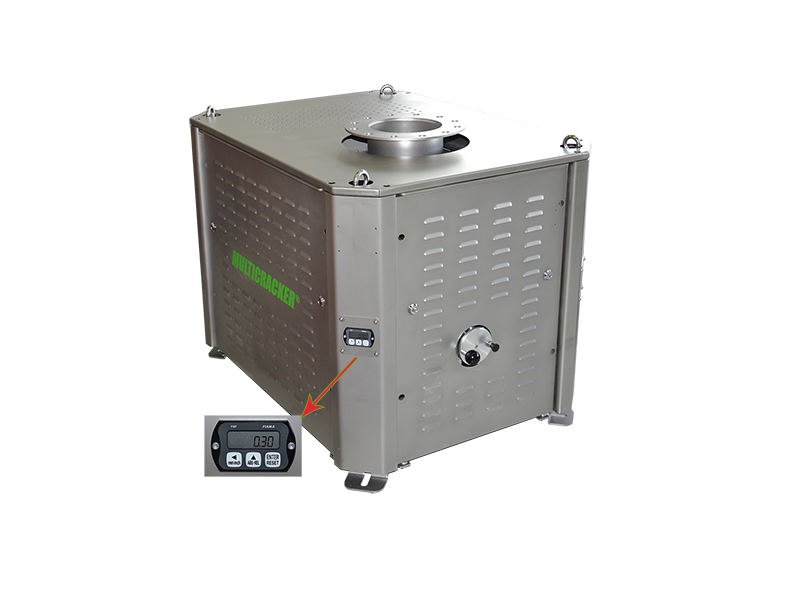

Multicracker MC-A4
Compact & powerful
The MULTICRACKER MC-A4 is the smallest model in our portfolio and the perfect grinder for smaller feed mills, farmers and feed dealers, for example.
Technical specifications:
- Throughput: Up to 3,5 metric tons per hour (depending on material and grinding gap)
- Outer dimensions: 926 x 597 x 381 mm (L x W x H),
- Weight: 140kg
- Drive power: 1x 4,0 kw
- Datasheet MC-A4
Standard equipment:
- Manual, stepless adjustment of the grinding gap
- Foreign object protection by spring technique
- Incl. one crackerunit / grinding unit
- Disk profi le of your choice
- stainless steel housing
- EC-conform
click to enlarge picture in a new window
Standard equipment
- Dustproof crackerunit
- All product touching parts (except crackerdisks), machine frame and housing in stainless steel
- Inlet- and outlet chute DN200
- Manual stepless adjustment of the grinding gap
- Digital display of the grinding gap
Available options:
- ATEX/NEMA certified motors and various protection classes (IP5x/IP6x)
- Motorized stepless adjustment of the grinding gap
- Stainless steel crackerdisks
- Integrated CIP system (Cleaning In Place)
